Products

Dicaliant products aim at providing you the highest possible accuracy in your on-board impedance measurements. Three product categories are available:

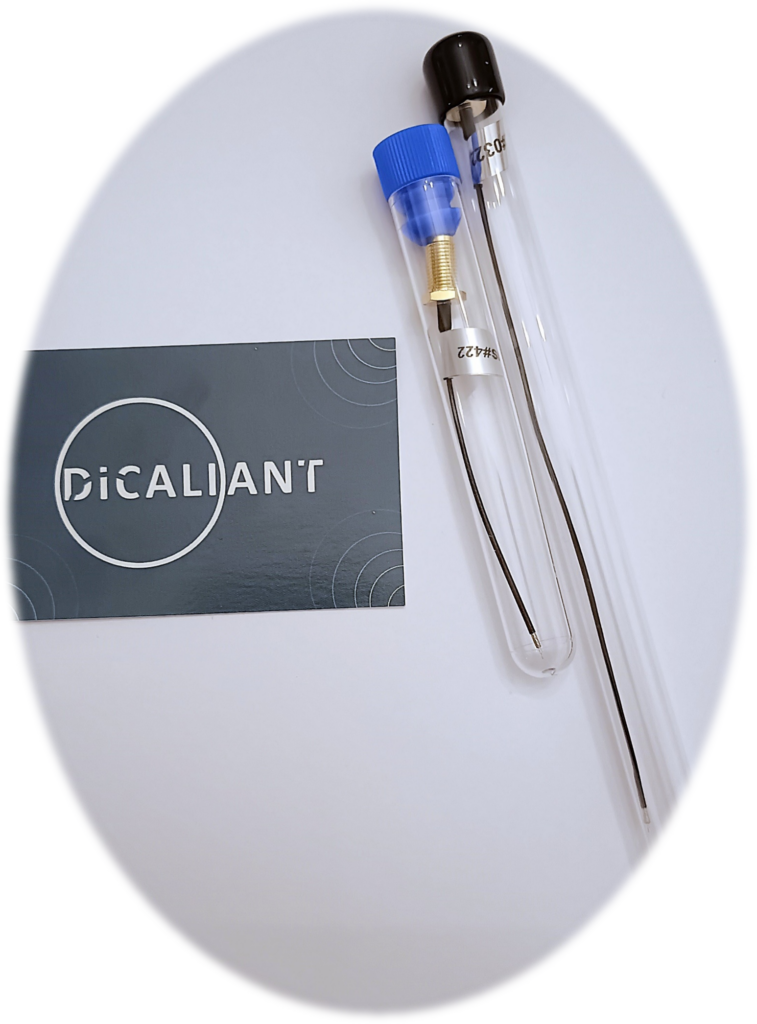

  • Dicaliant Digital Twin evaluation sets: for trying out the concept with your own test case, starting at 79 €, available from the Online Shop
  • Dicaliant Digital Twin pigtails: set of pigtails with de-embed models for regular R&D work, available from the Online Shop
  • ZAC-BOX calibration kits: if you don’t have a quality SMA cal kit, you can use Dicaliant ZAC-BOX one-port calibration kits which are configured to directly calibrate the pigtails that ship with the kit. ZAC-BOXes start at 895 €. Please contact us to order.

If you work above 4 GHz, note that in matching circuit design the component models and the board layout play major role. Please check our blog article on challenges and solutions at high frequencies.

If you feel uneasy handling the measurements and modelling, let’s arrange a mini-workshop together!

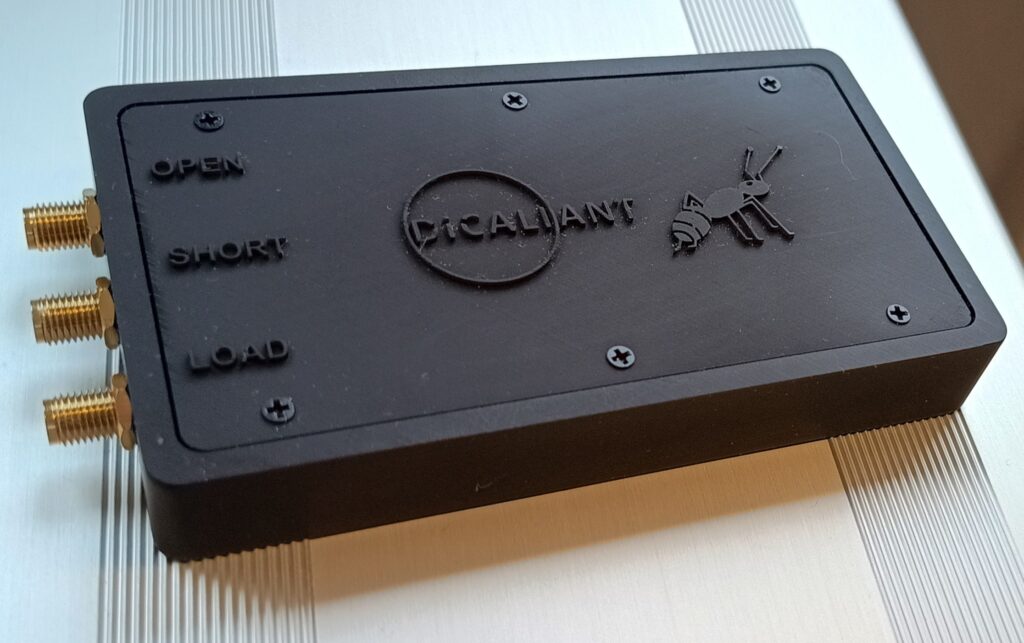

The ZAC-BOX calibration kits are available in three frequency classes:

ZAC-BOX 4 : 895€

for frequencies up to 4 GHz

ZAC-BOX 6 : 1095€

for frequencies up to 6 GHz

ZAC-BOX 8.5 : 1495€

for frequencies up to 8.5 GHz

All kits and accompanying pigtails are SMA-F (use M-M adapter at your VNA cable if necessary). The calibration standard models (short/open/load) are delivered by email.

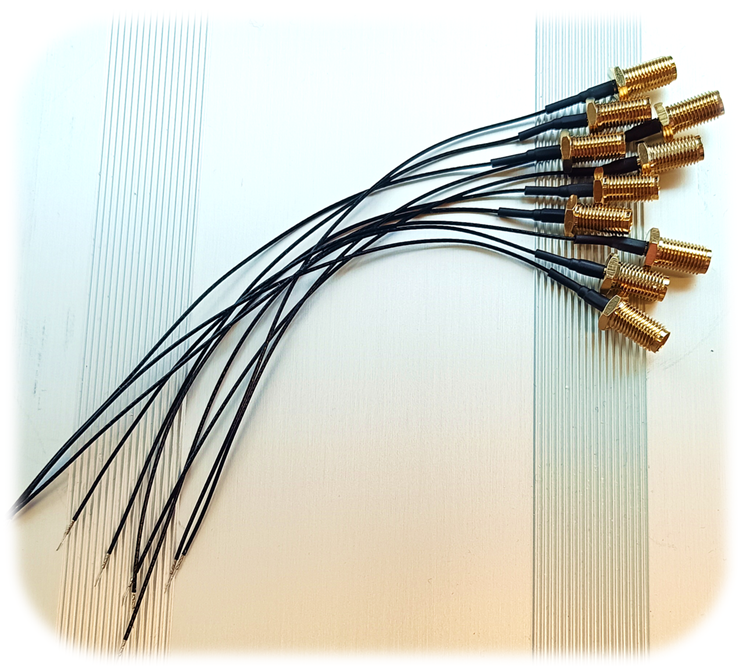

The ZAC-BOXes ship with 16 pcs of individually characterized flexible pigtails (length: 75 mm, diameter: 0.81 mm or 1.13 mm). New pigtail set can be ordered when needed. For 6 GHz and 8.5 GHz versions, each pigtail has a fine-tune model applied directly on the VNA after calibration.
